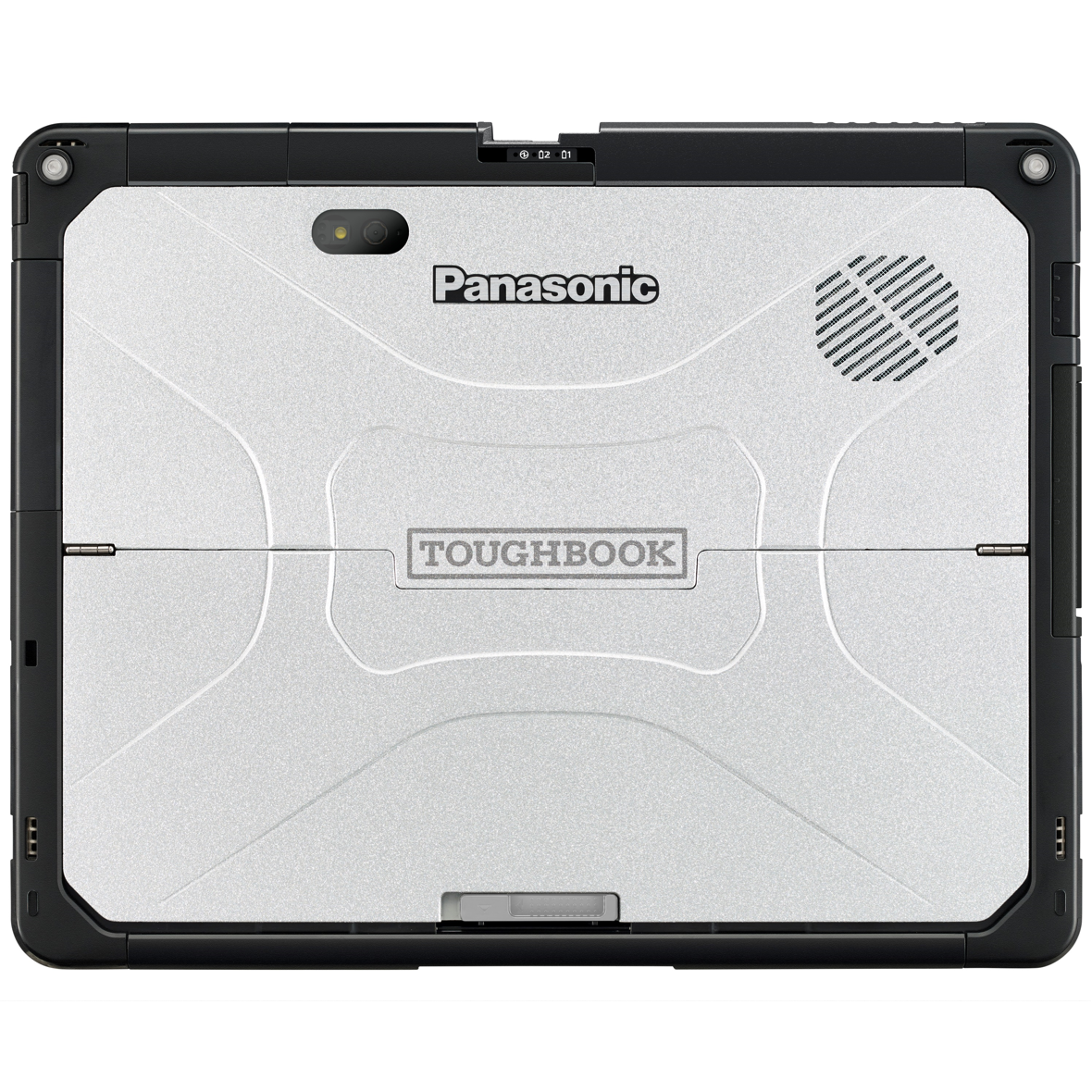

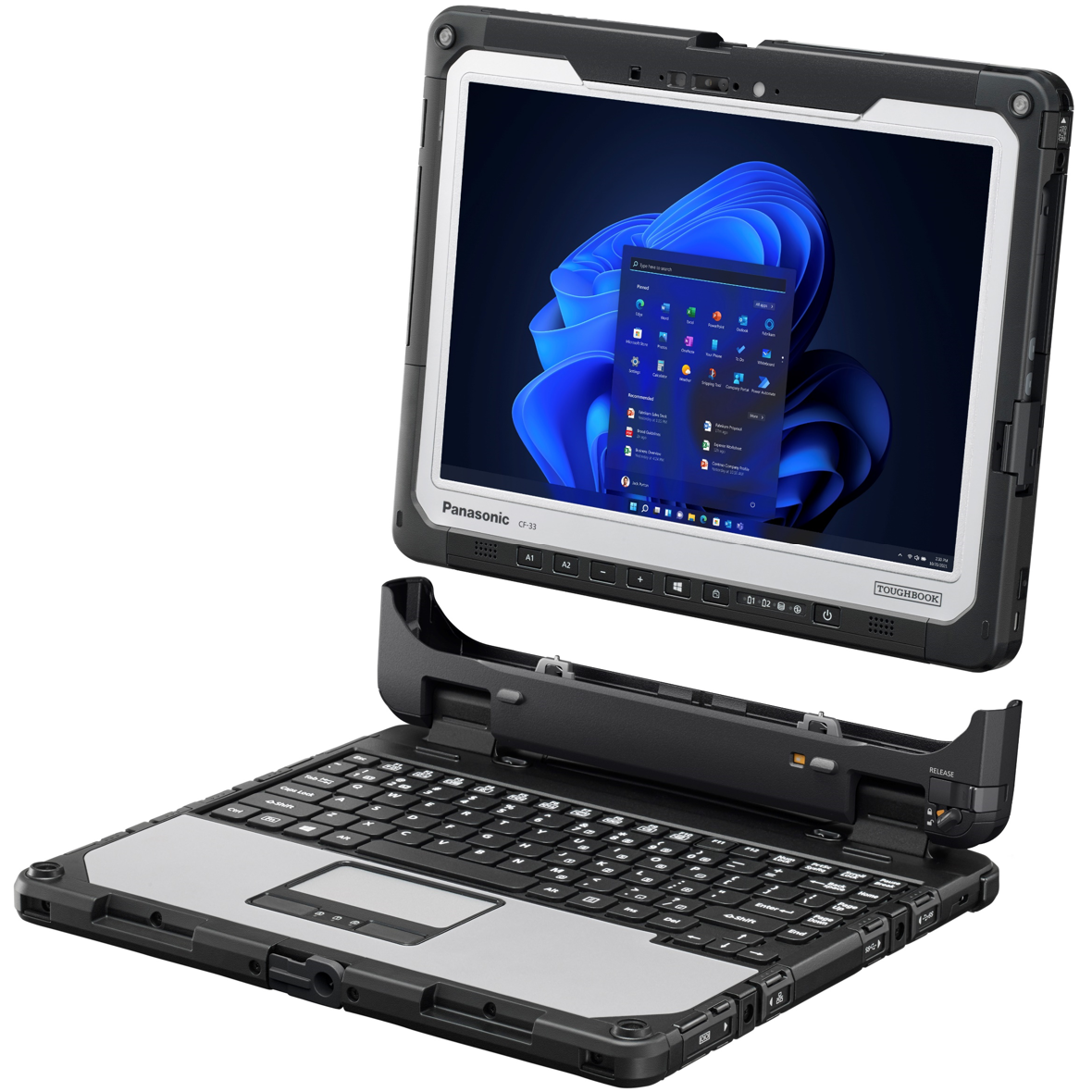

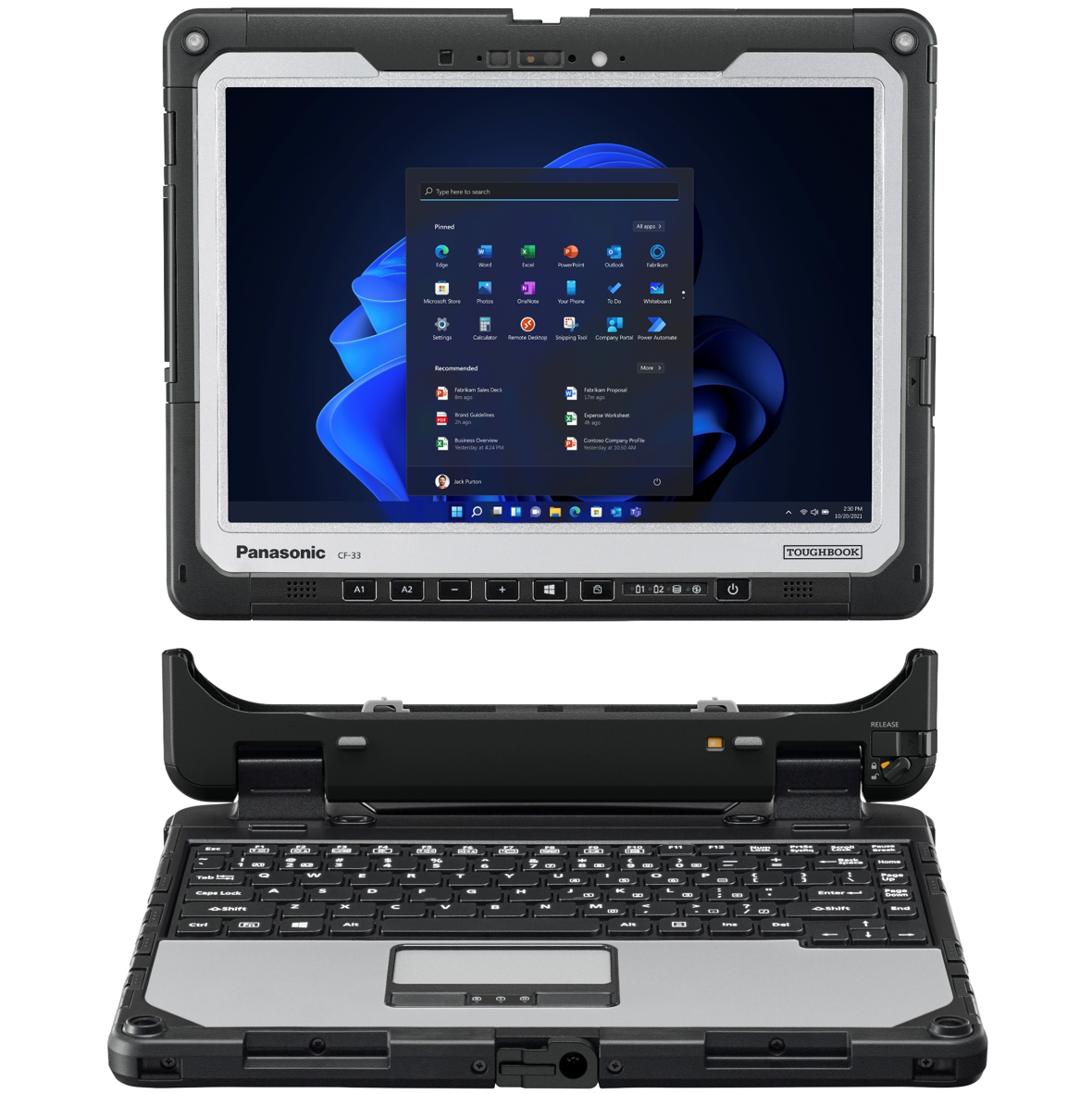

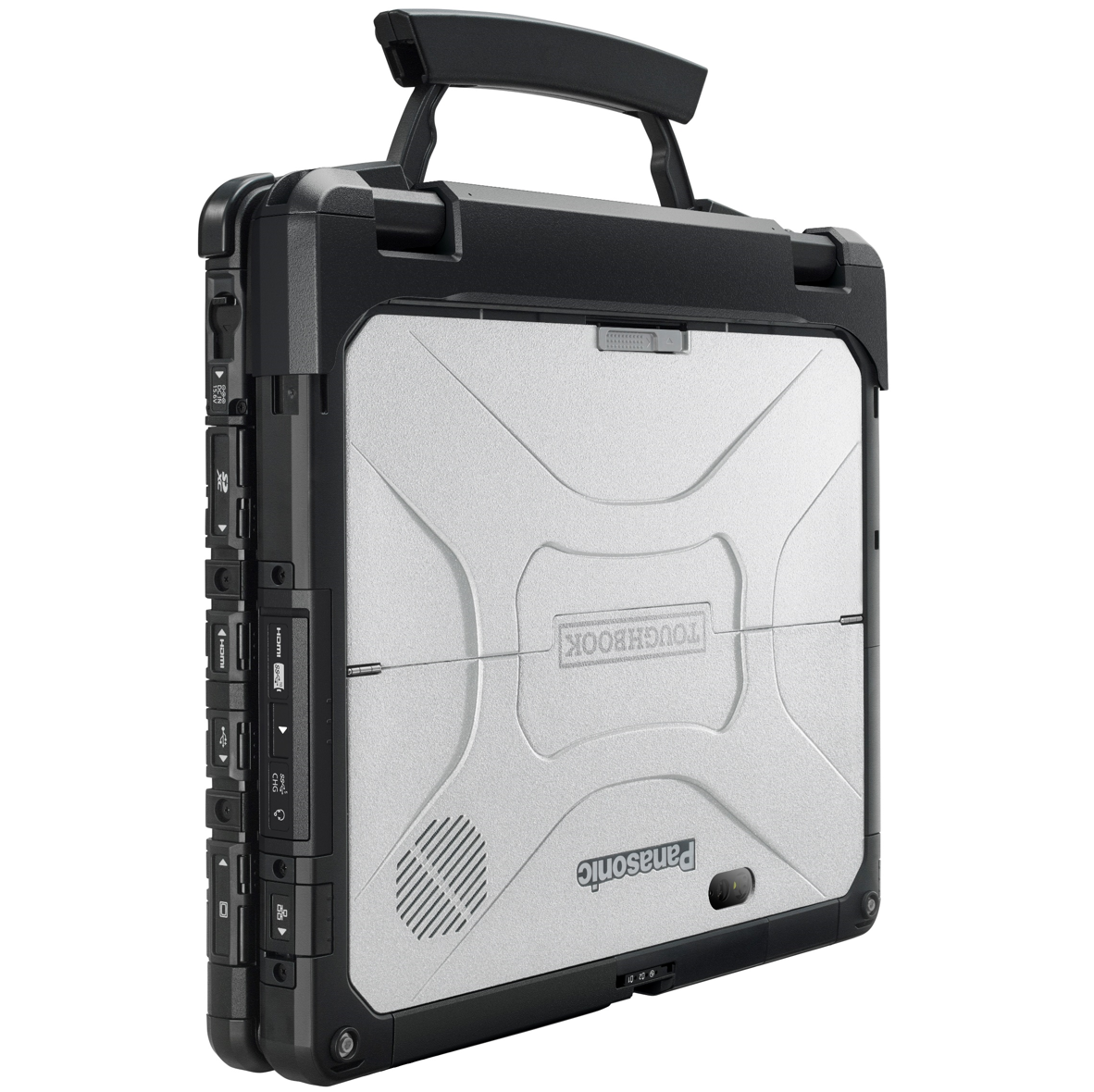

Panasonic Toughbook CF-33 2-in-1 Notebook Mk3 (i5/16GB/512GB)

Description

This is the latest Mark 3 version of the Panasonic Toughbook CF-33 notebook computer and is the best of the new breed of ‘detachable’ rugged notebooks.  It has a 12.0″ QHD screen, and is a fully rugged notebook with hot-swappable twin batteries, detachable keyboard and highly configurable capabilities which bring unrivalled flexibility and performance.

Thanks to the detachable keyboard design and 6 different usage modes, the Panasonic Toughbook CF-33 offers the best of all worlds for mobile workers and is highly suited for extensive outdoor use by pilots and aircraft engineers working remotely and on shipboard heliports.

Key Features

•  Mobile Computing Platform:
  • Intel® Core™ i5-1245U vPro™ Processor, 12 MB cache, 1.6 GHz up to 4.4 GHz
•  Operating System:
  • Windows 11 Pro 64-bit
•  RAM:
  • 16GB (Max. 32GB) DDR4
•  Storage:
  • 512GB OPAL NVMe SSD (1TB available as optional configuration)
•  Graphic Chip:
  • Intel® Iris Xe
•  Screen:
  • 12.0″ Active Matrix (TFT) colour LCD 2160 x 1440 (QHD) LCD with sunlight-viewable glove-enabled capacitive touchscreen (up to 1.200cd/m²), IP55 Digitiser
•  Bluetooth™:
  • 5.1 + EDR Class 1
•  Wireless LAN:
  • Intel® Wi-Fi6 AX211
•  Mobile Broadband*:
  • 4G LTE EM7421 optional
•  GPS*:
  • U-Blox NEO-M8 (optional)
•  Sound:
  • WAVE & MIDI playback, Intel® High Definition Audio subsystem support
•  Cameras:
  • Front: 2 MP with IR / privacy shutter (Windows Hello compliant)
  • Rear: 8 MP with autofocus & LED flash
•  SD/SDXC Memory Card:
  • x 1 (Keyboard)
•  Configuration port (Tablet)**:
  • Serial, 2D Barcode Reader (2nd USB 2.0 available as model options)
•  Interfaces:
  • Thunderbolt 4:
    • 1 x Type C
  •  USB:
    • 3 x USB 3.1 Gen 2, Type A (1 x  Tablet; 2 x Keyboard)
    • 1 x USB 2.0. Type A (Keyboard); optional (Tablet)**
  • HDMI:
    • 1 x (Tablet); 1 x (Keyboard)
  • VGA:
    • 1 x (Keyboard)
  • LAN:
    • 1 x (Tablet); x1 (Keyboard)
  • Native Serial Port:
    • 1 x optional (Tablet)**; 1 x (Keyboard)
  • Headset:
    • 1 x (Tablet); 1 x (Keyboard)
  • DC In:
    • 2 x (Tablet + Keyboard)
  • Port Replicator:
    • 1 x (Keyboard)
  • Dual Antenna Connector:
    • 1 x (Keyboard)
•  Business Expansion Module** (available as model options):
  • Smart Card Reader
  • NFC
  • Fingerprint Reader
•  Power:
  • Power Management:
    • Hot-swap; Standby function; ACPI BIOS
  • AC Adapter:
    • Input: 100 V – 240 V AC, 50 Hz/ 60 Hz
    • Output: 15.6 V DC, 4.06A
  • Battery:
    • Standard: 2 x Li-Ion (3 cell, 22Whr)
    • Extended: 2 x Li-Ion (6 cell, 45 Whr) (optional)
  • Battery Life:
    • Standard: Approx. 10 hours (Mobile Mark™ 2014)
    • Extended: Approx. 20 hours (Mobile Mark™ 2014)
•  Operating Temperature:
  • MIL-STD 810G, -29 °C to 60 °C ***
•  Security:
  • TPM (TCG V2.0 compliant)
  • Password security (supervisor password, user password, hard disc lock)
  • Integrated hardware security lock slot
•  Dimensions (W x H x D):
  • Standard Battery: 313.0 mm × 288.4 mm × 46.1 mm (12.3″ × 11.4″ × 1.8″)
  • Extended Battery: 313.0 mm x 288.4 mm x 56.6 mm (12.3″ x 11.4″ x 2.2″)
•  Weight:
  • Standard Battery: 2.78 kg (6.2 lb)
  • Extended Battery: 3.14 kg (6.9 lb)
•  Standard Configuration:
  • CF-33 Mk3
  • 16GB RAM
  • 512GB SSD
  • 2 x standard battery pack
  • IP55 digitiser pen
•  Included in the box:
  • Power Supply (UK)
  • Power Cord (UK)
  • Display cleaning cloth
  • User Manual
•  Testing Standards:
  • Water Resistance IEC529 (JIS C0920) IPx5 ***
  • Dust Resistance: IEC529 (JIS C0920) IP6x ***
  • Drop Resistance: MIL-STD 810G, 150cm ***

*  Optional
**  One option exclusively possible in configuration port / business expansion module
***  Tested by an independent third-party lab following MIL-STD-810G and IEC 60529

CF-33mk3: E&OE.  Actual specifications may differ – please contact us for information.
