Description

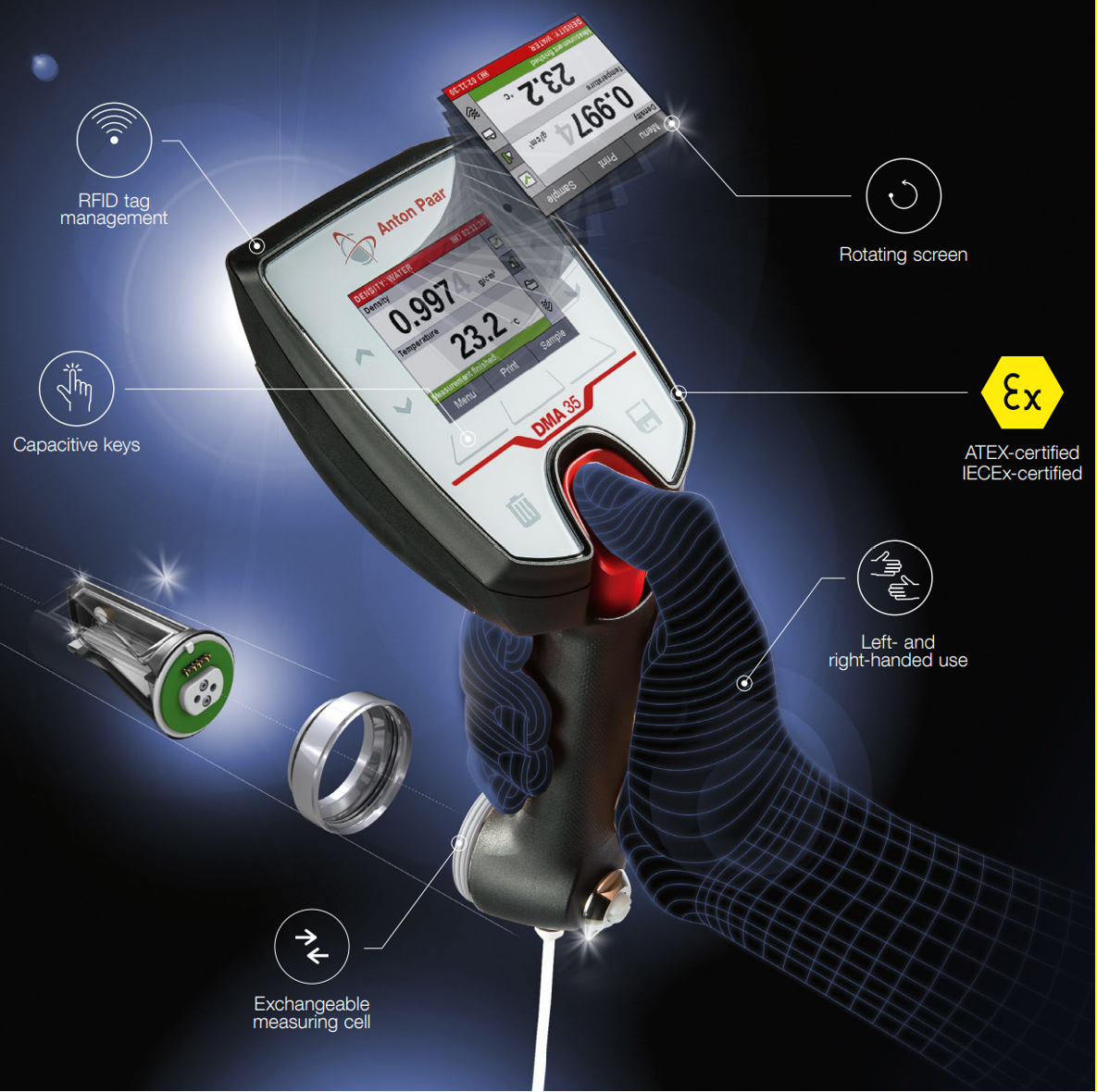

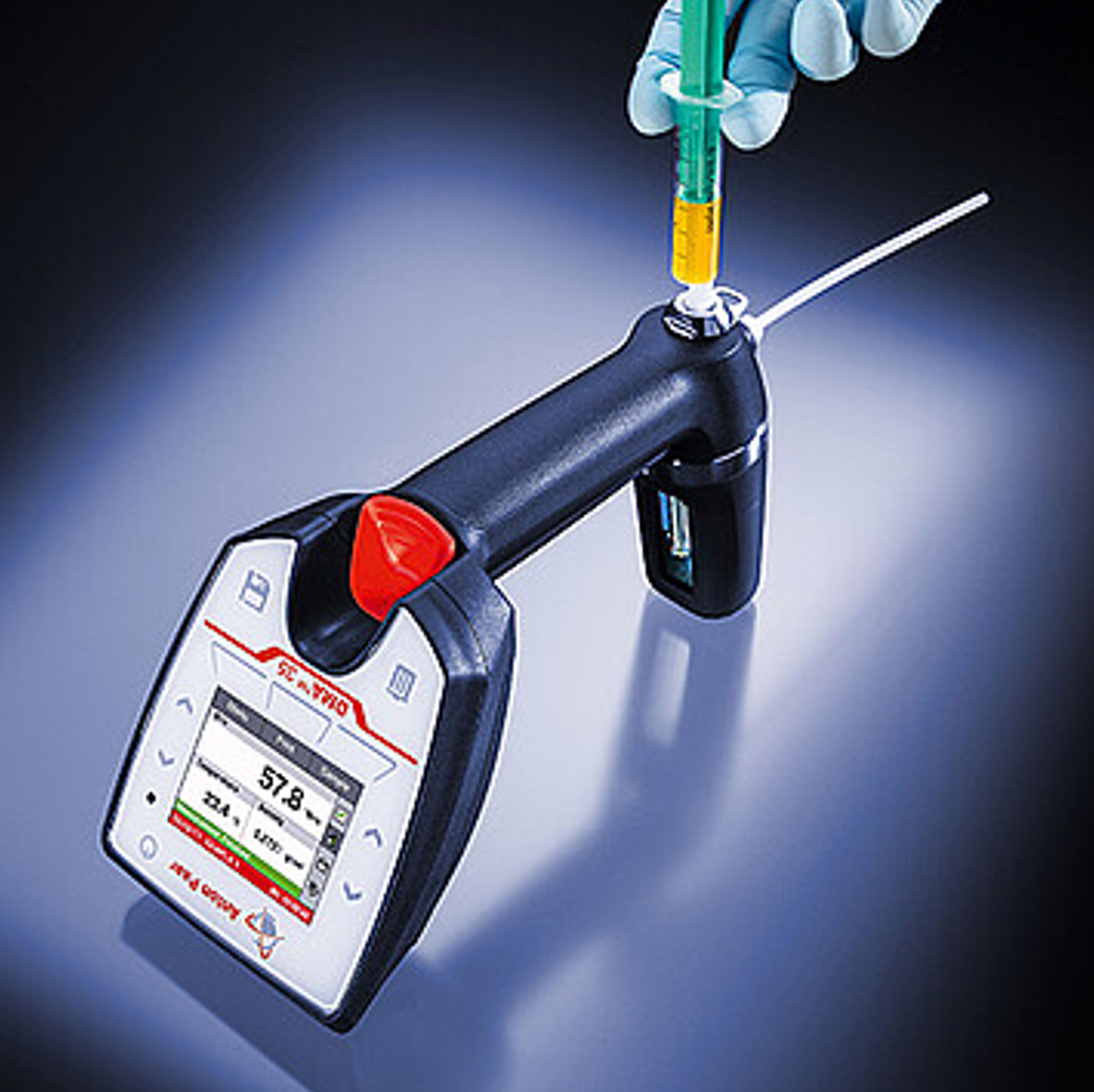

This portable, digital meter is used for determining the density, specific gravity and concentration of jet fuel, directly at the sampling location. Designed to withstand the knocks and spills of outdoor use, it is the only intrinsically safe, portable density meter on the market. It is certified according to the latest ATEX & IECEx standards and complies fully with ASTM D7777 & IP 559 standards.0.0
This item comes included in our Jet A-1 Minimum Helicopter Refuel Equipment Bundle (see REF-11046).
Benefits of Digital Density Measurement
- Replaces all glass hydrometers
- Delivers quick results (No need for a lab, the unit displays the results within a few seconds)
- Does not waste any sample (Only 2 millilitres of sample needed)
- Ensures perfect traceability of results (Results are stored & ready for printing/exporting)
- RFID interface for quick sample identification
- Bluetooth® interface for convenient data handling in the field
Technical Specification
- Patents Granted:
- Smart connection of measuring cell:
- Patent AT516421 (B1)
- EP3015847 (B1)
- CN 105571982 B
- Smart connection of measuring cell:
- Other Special Functions:
- Viscosity correction for reliable measurements, also on highly viscous samples
- Gesture control for easy one-handed measurements
- Identification of results outside your specified limits
- Measuring Range:
- Density: 0 g/cm³ to 3 g/cm³
- Temperature: 0 °C to 40 °C (32 °F to 104 °F)*
- Accuracy:
- Density: 0.001 g/cm³ **
- Temperature: 0.2 °C (0.4 °F)
- Repeatability, s.d.***:
- Density: 0.0005 g/cm³ **
- Temperature: 0.1 °C (0.2 °F)
- Reproducibility, s.d.***:
- Density: 0.0007 g/cm³
- Digital Resolution:
- Density: 0.0001 g/cm³
- Temperature: 0.1 °C (0.1 °F)
- Ambient Temperature****:
- Ex Petrol version: -10 °C to +40 °C (14 °F to 104 °F)
- Supporting Measuring Units:
- Specific gravity
- Alcohol tables
- Sugar/extract tables
- API functions
- H2SO4 tables
- Ten programmable custom-specific measuring units
- Sample Volume: 2 ml
- Dimensions (L x W x H): 245 mm x 103 mm x 126 mm
- Data Memory: 1200 measured results, 30 measuring methods, 250 sample IDs
- Power Supply: 3 x 1.5 V LR06 AA alkaline batteries (not included)
- Weight: 660 g
- Interfaces: Bluetooth®, RFID***** (both included by default)
- Protection Class: IP54
- Intrinsic safety (Ex Petrol version):
- ATEX: II 2G Ex ib IIB T4 Gb
- IECEx: Ex ib IIB T4 Gb
- Menu Languages: English, German, Chinese, Japanese, French, Russian, Italian, Portuguese, Turkish, Spanish
- Notes:
- * Measurements up to 100 °C possible
- ** Viscosity <300 mPa•s, density <2 g/cm³
- *** according to ISO 5725
- **** Sample must not freeze within the measuring cell; Ex Petrol version: -10 °C to +40 °C (14 °F to 104 °F)
***** RFID read & write (Ex Petrol version)
Please contact us for further information on this item.
