Description

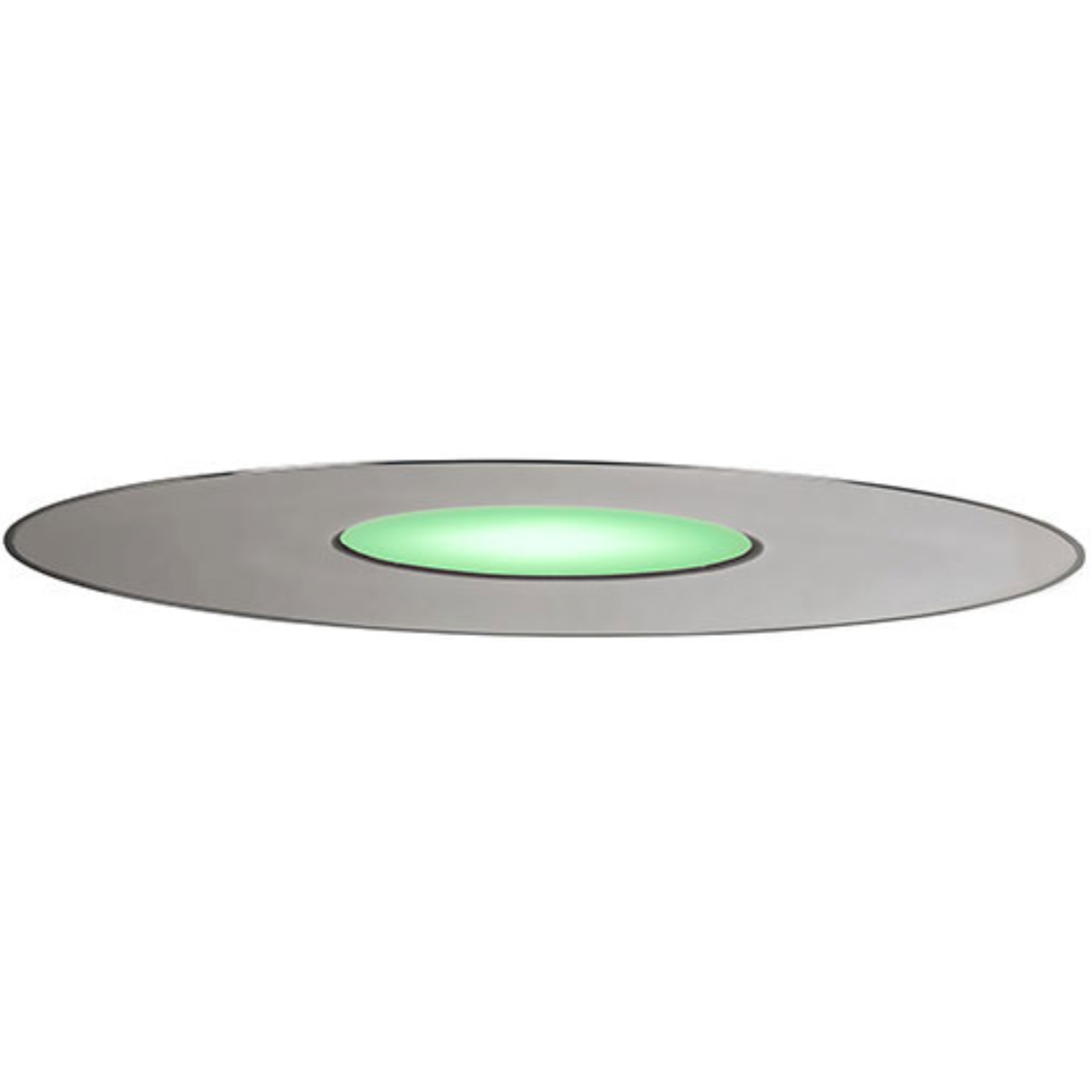

These heliport lights have been designed to be flush to the deck and do not cause an obstacle for personnel walking on the deck, thereby making the heliport suitable for alternative uses, such as recreational activities. The lights offer an elegant and minimalistic design, with no visible screws, and will fit optimally into any ambitious heliport layout.
The unit is aimed at providing light from approx. 20° (horizontal) upwards with characteristics to meet CAP 437 requirements for perimeter lights.
The light comes as standard with multi-sensor electronics, measuring multiple modes of operation, detecting an upcoming malfunction before the light might fail. Alternatively for retro-fits, the lights can also be operated by customer-supplied (existing) control systems, with a simple on/off functionality. Any mode of installation is possible, such as welding, bolting and gluing, both from above and below the deck.
Key Features
- Illumination of the perimeter on the shipboard heliport
- Flush integration for an obstacle-free deck
- High‑output LED fixture engineered for focused, directional illumination
- Precision‑shaped optical assembly for controlled beam distribution
- Robust, sealed housing designed for continuous operation in harsh environments
- Excellent thermal management for stable light output and extended LED lifespan
- Resistant to vibration, shock, moisture & corrosive atmospheres
- Low‑power, high‑efficiency LED technology reduces electrical load
- Multiple voltage and light‑output configurations available
- Compact form factor suitable for confined or equipment‑dense installations

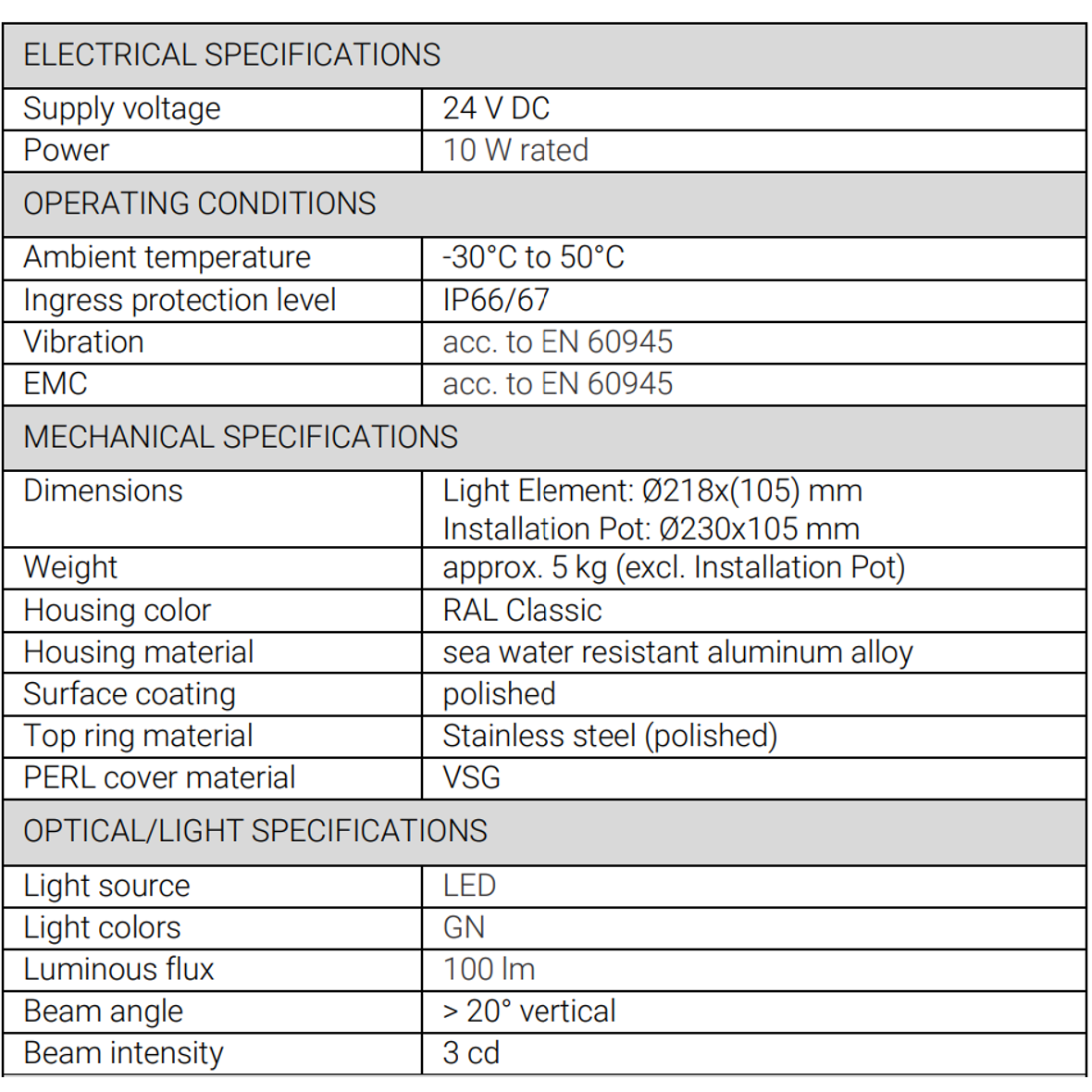

Technical Details
- Power: 24 V DC / 10 W
- Temperature range: -30 °C to +50 °C
- Protection rating: IP 66/67

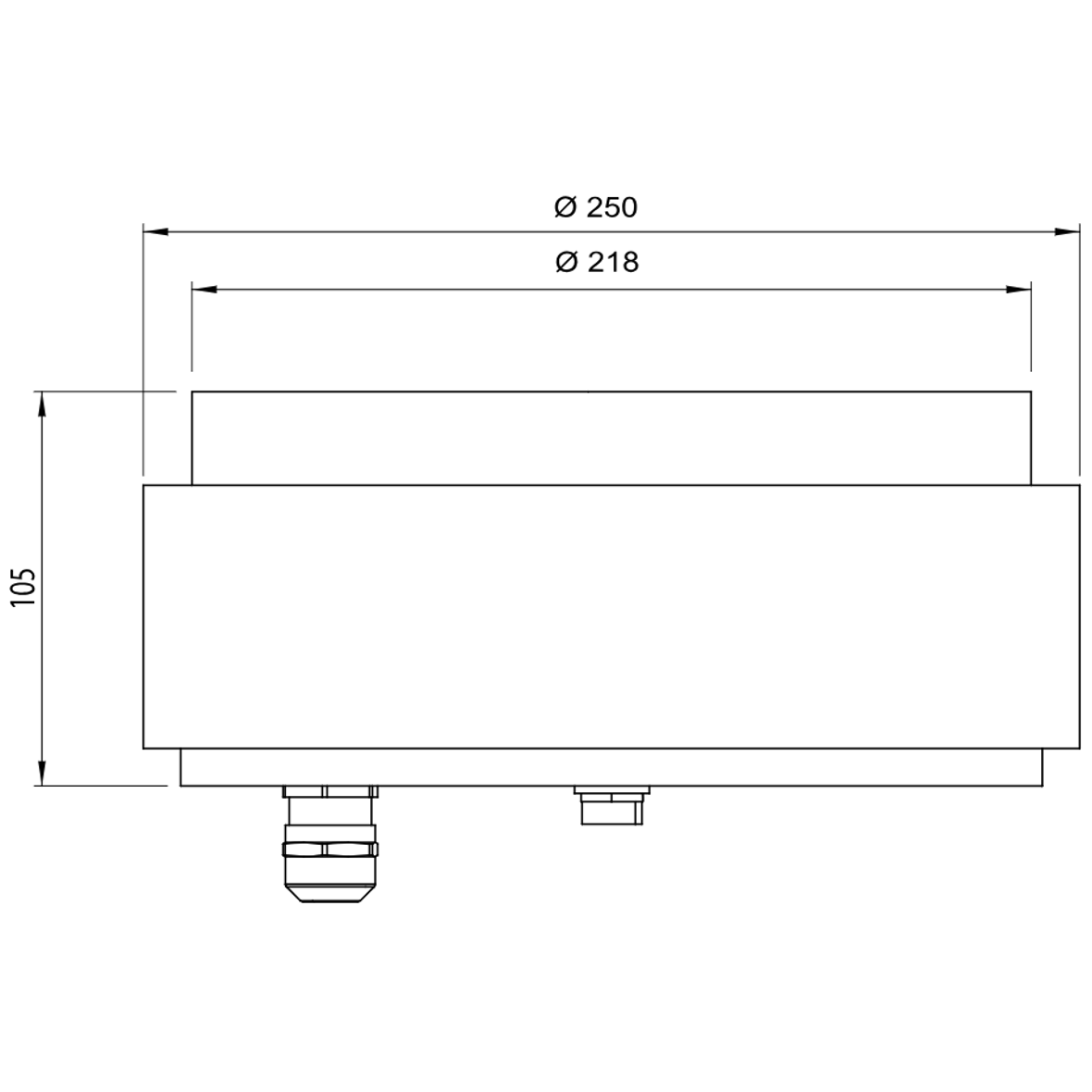

- Dimensions:
- Light Element: Ø 218 x 105 mm
- Installation Pot: Ø 230 x 105 mm
- Weight (approx.): 5.0 kg
- Colour: RAL Classic
Please contact us for more information on our specialist heliport lighting solutions.
