Description

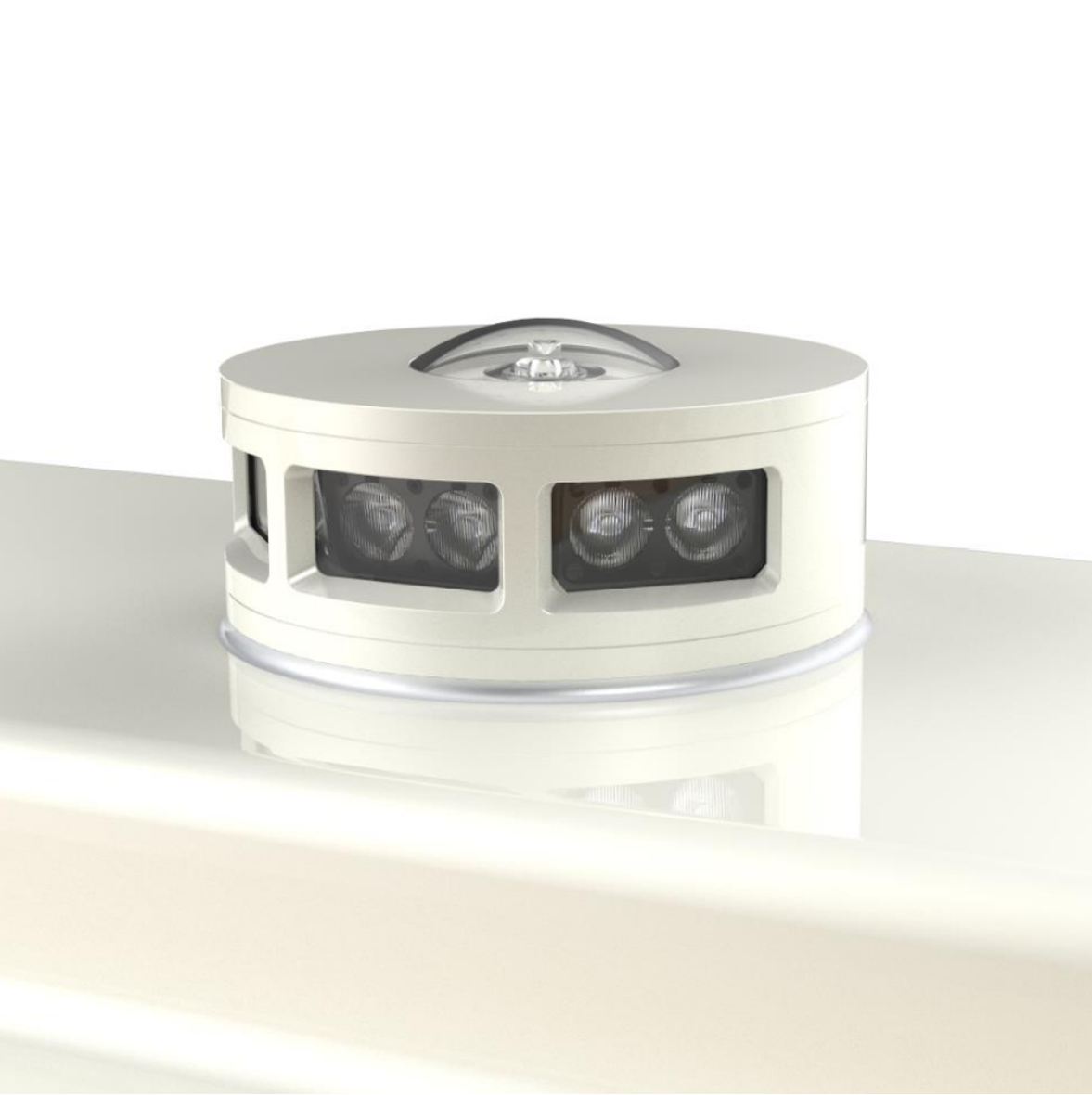

These combined deck-edge & floodlights have been designed to mark the heliport’s outer limits and illuminate the entire heliport in a way which does not dazzle pilots’ vision during their approach/landing & take-off/departure phases. The units have a low and compact housing profile which is made of seawater-resistant aluminium for performance in extreme marine environments.
The light comes as standard with multi-sensor electronics, measuring multiple modes of operation, detecting an upcoming malfunction before the light might fail. Alternatively for retro-fits, the lights can also be operated by customer-supplied (existing) control systems, with a simple on/off functionality. Any mode of installation is possible, such as welding, bolting and gluing, both from above and below the deck.
Key Features
- High‑efficiency LED downlight
- Compact, low‑profile design
- Uniform, glare‑controlled illumination
- Rugged, vibration‑resistant construction
- Corrosion‑resistant materials
- Sealed for harsh marine & commercial environments
- Low power consumption
- Multiple voltage & colour‑temperature options
- Easy, secure mounting system
Technical Details
- Power: 48 V DC / 30 W / Max 50 W
- Temperature range: -25 °C to +49 °C
- Protection rating: IP 66/67

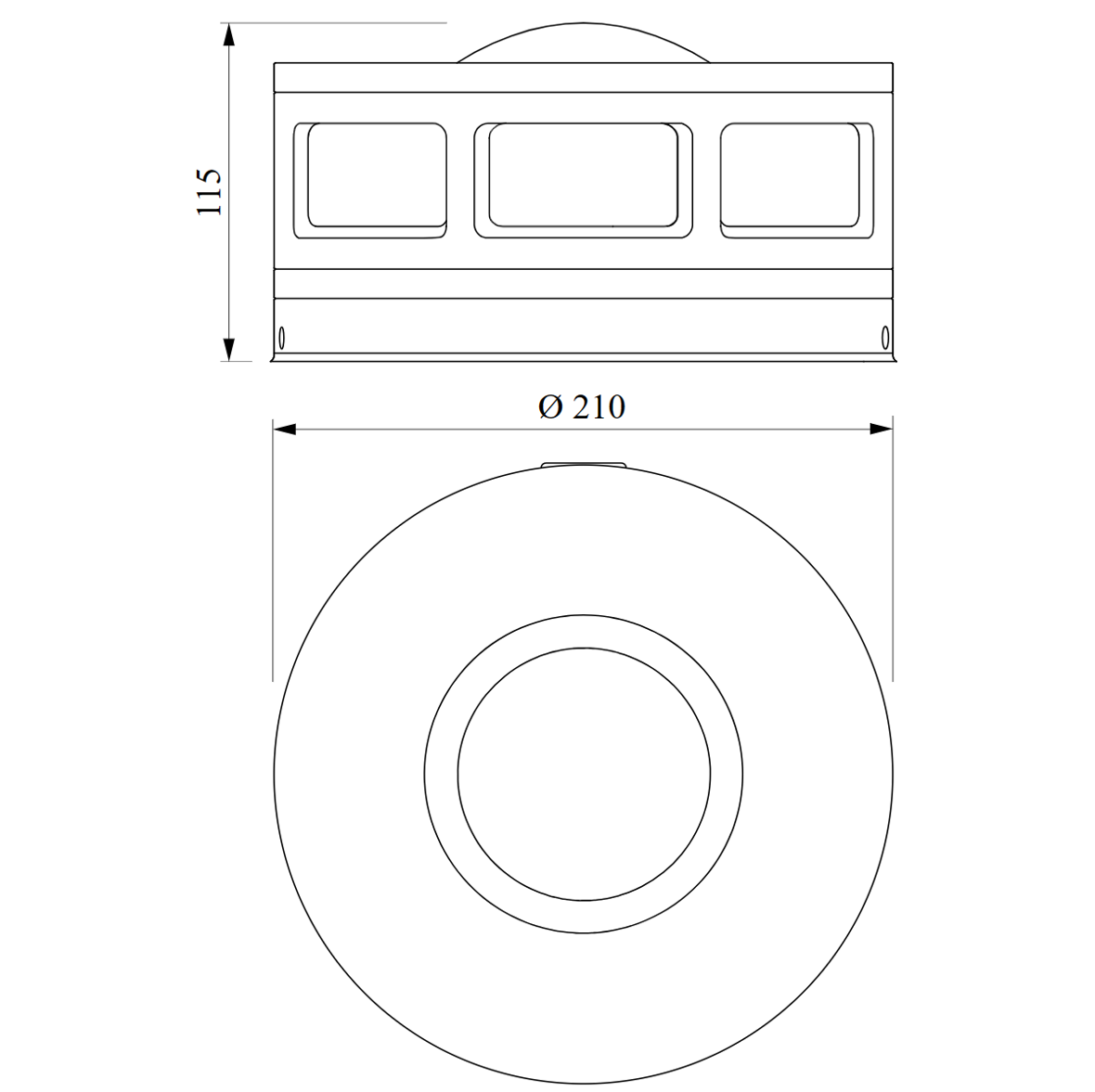

- Dimensions: Ø 210 x 115 mm
- Weight (approx.): 5.0 kg
- Colour: RAL Classic
Please contact us for more information on our specialist heliport lighting solutions.
